Frame Transfer Molding Press

Home » Products » Rubber Machinery » Frame Transfer Molding Press » H-XZB-ES350 Frame Transfer Molding Press

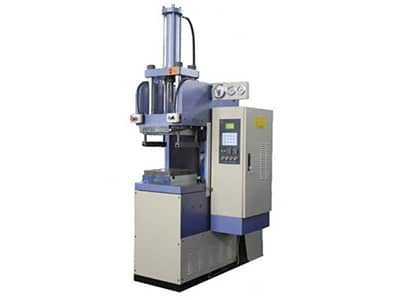

XZB-ES270 Frame Transfer Molding Press H-XZB-ES350 Frame Transfer Molding Press

Applications
CHAP frame transfer molding press is suitable for producing difficult-to-mold rubber products, like those with metal insert, complex shape, big cross section and thick wall.

Technical Specifications of Frame Transfer Molding Press

	H-XZB-ES350
Clamping force	350 KN
Clamping stroke	300 mm
Rapid clamping speed	≥30 mm/s
Heating plate size	300mm×350mm
Heating plate spacing	30~330 mm
Max operating temperature of heating plate	250 ℃
Material cylinder spec	￠40mm×165mm
Injection stroke	270 mm
Injection pressure	80 Mpa
Motor power	3 KW
Heating power	4.4 KW
External dimension (LxWxH)	1000mm×1500mm×2345mm
Oil tank capacity	200 L

CHAP is a major manufacturer and supplier of frame transfer molding press in China. Our company is located in Ningbo City which provides us with convenient transportation. Therefore, we can deliver our vacuum rubber vulcanizing machine, plate rubber vulcanizing machine, custom rubber machine, etc. to you in time. These products are manufactured in conformity with the standard of ISO, so our worldwide customers can feel secure in inquiring and ordering. In addition, we establish long term cooperative relationship with material suppliers, which helps reduce our material purchasing cost. Therefore, we can provide rubber machinery at reasonable prices. If you have any need, please contact us directly. We look forward to cooperating with you. Thank you.
