Tire Valve Vulcanizing Press

Home » Products » Rubber Machinery » Tire Valve Vulcanizing Machine » QMX-D550X600_2000 Tire Valve Vulcanizing Press

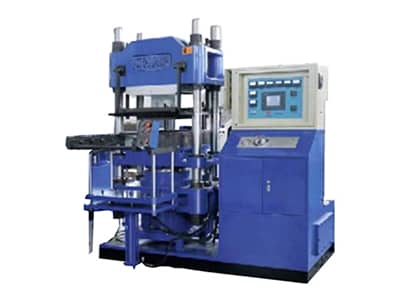

Tire Valve Vulcanizing Press
Feedback Form

CHAP tire valve vulcanizing press is a rubber molding machine which is widely used for producing all kinds of rubber tire valves. Environmentally friendly and economical, it is increasingly popular with customers worldwide.

Technical Specifications of Tire Valve Vulcanizing Press

Clamping force 2000 KN
Clamping stroke 300 mm
Rapid clamping speed ≥50 mm/s
Heating plate size 550 mm×600 mm
Heating plate spacing 400 mm
Max operating temperature of heating plate 250 ℃
Ejector stroke 300 mm
Max ejector force 60 KN
Motor power 5.5 KW
Heating power 13.2 KW
External dimension (LxWxH) 2100mm×2500mm×2200mm
Oil tank capacity 300 L

As an experienced tire valve vulcanizing machine manufacturer in China, we at CHAP are able to produce plate rubber vulcanizing machine, custom rubber machine, vacuum rubber vulcanizing machine, and more. In addition, we can manufacture our rubber machinery according to customers' specific requirements. We are committed to offering high quality products and thoughtful customer services, and we are certified by ISO9001. Located in Ningbo City, Zhejiang Province, we have very convenient sea, land and air transportation, thus enabling us to deliver our products very promptly and very cheaply. Please contact us for more product information. We are looking forward to serving you.
