Rubber Injection Molding Machine

Home » Products » Rubber Machinery » Rubber Injection Molding Machine » HY-D550X600/2000 Rubber Injection Molding Machine

HY-D500X500/1500 HY-D550X600/2000 HY-D600X650/2500 HY-650X730/3000 HY-700X800/4000

Applications

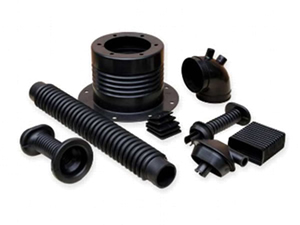

Compact and efficient, CHAP rubber injection molding machine is particularly suitable for producing rubber products that are difficult to mold, like those with complex shapes.

Technical Specifications of Rubber Injection Molding Machine

	HY-D550×600/2000
Clamping force	2000 KN
Heating plate size	550 mm×600 mm
Heating plate spacing	450~600 mm
Theoretical injection capacity	1500cm³
Screw diameter	￠45 mm
Screw rotational speed	0~120 r/min
Plunger diameter	￠85 mm
Injection pressure	170 Mpa
Mould opening stroke	500 mm
Motor power	(11+5.5) KW
Heating power	19.1 KW
External dimension (LxWxH)	2835mm×2140mm×4200mm
Oil tank capacity	420L

Beginning its business in 2004, CHAP is one of the rubber injection molding machine manufacturers and suppliers. We can produce various rubber machineries, such as rubber transfer molding machine, frame transfer molding press, plate rubber vulcanizing machine, custom rubber machine, and more. Located in Ningbo City, we are surrounded by transportation facilities like highways, airports, and sea ports. This allows us to conveniently transport our products and effectively reduce our customers' freight charges. If you are interested in our products, please do not hesitate to contact us. We look forward to doing business with you.
