- The rubber injection molding machine has two operation modes: manual and semi-automatic. Users can choose the operation mode according to their application needs.
- Due to PLC control system, this injection machine features a stable and reliable operation with a low failure rate. Customers can choose an Omaron or Siemens PLC system.
- The CHAP-2500 Rubber injection molding machine features a four-cylinder parallel injection structure, which improves the balance during rubber injection, and cuts down on the longitudinal space of the injection component. As a result, it is easy to remove the injection plunger.
- This machine's electrical control system ensures stable operation.
Technical Specifications of Rubber Injection Molding Machine

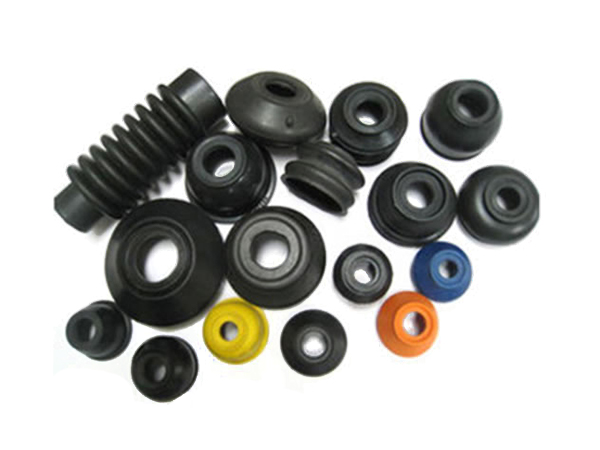

Multilateral, polygonal and other complex rubber products, especially sporting equipment, medical suppliers, automotive supplies, electrical products, insulators and other precise electric power products.
| Item Parameters || CHAP-2500 |
| Clamping force || 2500 kN |
| Heating Plate Size || 560×630 mm×mm |
| Heating Plate Space || 600 mm |
| Theoretical Injection Capacity || 2700 cm3 |
| Screw Diameter || Φ45 mm |
| Screw Rotational Speed || 0~120 r/min |
| Plunger Diameter || Φ95 mm |
| Injection Pressure || 173 MPa |
| Mold Opening Stroke || 500 mm |
| Motor Power || 15 kW |
| Heating Power || 16 kW |
| External Dimension (L×W×H) || 1800X4200X4000 |
| Oil Tank Capacity || 400 L |
